Achieve stunning quality with incredible print resolutions and wider color gaumuts that enhance every detail.

Protects print heads from product strikes, ensuring long-term reliability on print heads and less product waste when working with inconsistent or odd shaped objects.

Securely holds light materials and/or sheets in place for precise printing.

Ensures consistent ink flow and maximizes ink volume utilization. Featuring vacuum-sealed ink bags with snap-on installation, it eliminates mess during replacements and preserves a 12-month shelf life.

Adds glossy embellishments for a professional finish.

for broader product applications. This improvement ensures our printers can handle a wider range of materials and surfaces that have high impact, allowing you to expand your creative possibilities and meet various customer demands with ease.

Each printer is shipped with the following:

• 1 INK BAG SET 8 colors, CMYK, 2 x White, 2 x Varnish; 220mL each
• 1 USB key preloaded with file resources and driver software
• 1 Cap Top Filters - 20 per pack
• 8 Syringes with silicone tip for maintainance
• 1 E47 lamp filters pack
• 1 Standing loupe 10x magnifier
• 1 Syringe for maintenance
• 2 Cap Top - Spare Replacement Part
• 8 Damper Set - Spare Replacement Part
• 1 Lithium grease
• 1 99% Isopropyl Solution 100 mL
• 1 Masking Tape Roll
• 1 Lubricating Oil
• 1 Cotton Cloth for cleaning
• 1 Pump bracket pad - Spare Replacement Part
• 1 Gloves
• 1 Polyethelene Foam Pad Set - To protect Acrylic Cover when lifted
• 1 USB 3.0 Cable Connection Cord
• 1 Power Cable - for Printer
• 1 Ink Basket Protective Pad - Spare Replacement Part
• 1 Porous Pad - Spare Replacement Part
• 1 Mirror Tool - use to view under printer head
• 1 Phillips Screwdriver with magnetic tip
• 1 Mini Phillips Screwdriver with magnetic tip
• 1 Allen Wrench L Hex Key Set
• 1 Tweezer
• 1 Extra screw set
• 1 Spanner Bearing for needle
• 1 UV sunglasses to protect your eyes
• 1 Anti Static Brush
• 1 Metal Ruler (Inches/cm/mm)
• 1 Clear Acetate Adhesion Sheet Set - for nozzle checks and test printing

Actual Flatbed Size 24.5” W x 37.5” L* (open-ended for product overhang)

Max. Curable Imprint Area 24” W x 36” L

Max. Substrate Height 6” H

Max. Substrate Weight 44 lbs

Printer Size 61” W x 61” L x 31” H

Printer Stand Size (included) 32” W x 51” L x 21” H

UV Lamp 2x 395nm, 48V

Print Heads 2 x Epson PrecisionCore i-3200 (4 channels each)

Accessory Options 360° rotary attachment, custom trays

Built-in Vacuum Bed Holds down flat, lightweight materials

Power Source 100~120V AC, 50/60Hz or 210~230V AC, 50/60Hz

Power Consumption Approx 140W (standby) Approx 350W (operation)

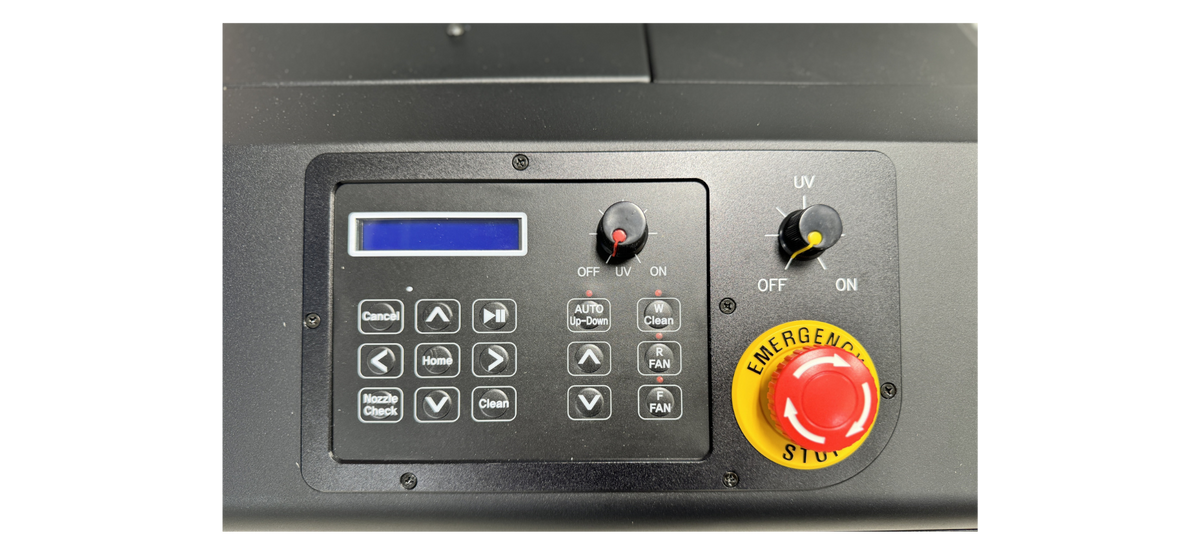

Control Panel 15 button interface; LED display

Warranty 3-Year Limited Warranty

Consumable Parts Cap tops, ink, dampers, UV lamp
filters, ink tubes

Interface USB 2.0 Interface (1x)

Ink Process (standard) CMYK + WW + VV (can be customized)

Ink Type (Standard) Inspira Series H2DX

Ink Supply Vacuum-sealed ink bags - 220 mL

Optimized Resolution 720x600, 720x900, 720x1200, 720x1800, 720x2400, 720x3600 dpi

System Recommendations (PC only) Multi-core CPU, 16GB RAM, 1TB HDD or SDD, Windows 10 or later

Printer Weight 410 lbs

Shipping Weight 750 lbs

Shipping Dimensions 65” W x 75” L x 42” H

Environmental Condition 68~77° F; Humidity 35~70% (non-condensing)

RIP Software - Included Includes Flexi Complete 1 Year Subscription RIP Software. Other options includes: LogoJET Print Pro powered by Kothari.
Onyx Go PLUS

Installation & Training Onsite installation and training
